TC/TF系列是一款台式高速高精度数控等离子切割机，采用一体式模块化结构，安装方便，集成抽烟

工作台，可选配抽烟除 尘系统，达到环保要求。床身、横梁、立柱等主要部件均经过时效处理，纵、

横向导向均采用进口精密滚珠直线导轨，导向精度好。整机高速运行平稳、精度高（直线尺寸精度

±0.1mm/m，重复定位精度±0.05mm)。

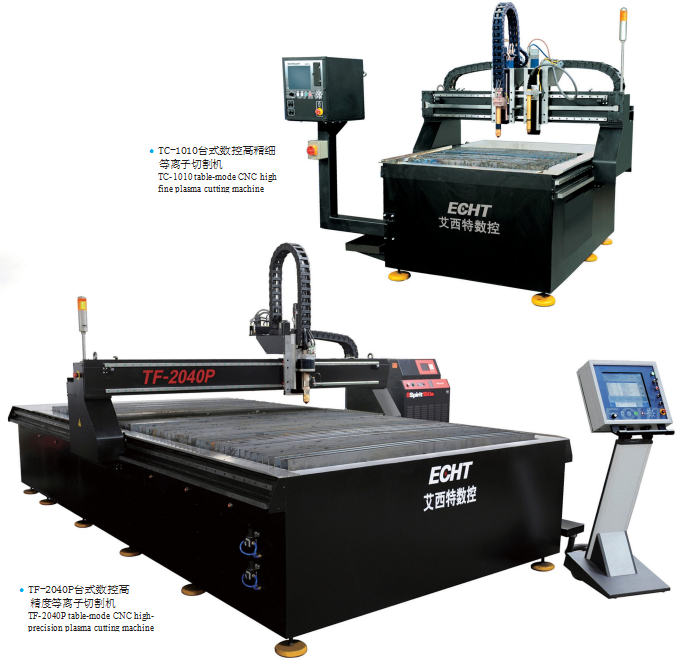

TC/TF series cutting machine is a table-mode high speed & high precision NC plasma cutting

machine, which features compact modular construction for easy and fast installation and

commissioning. Integrated fume extraction table could be equipped with fume and dust collector

system to meet environment requirement. The main parts, including frame, crossbeam and vertical

 pole etc.,are treated by aging treatment. The guide of the transverse and longitudinal adopts imported

 high-precision linear tracks. The TC/TF series machine runs smoothly in high precision (linear dimension

 accuracy ±0.1mm/m, re-positioning accuracy: ±0.05mm).
